Product Description

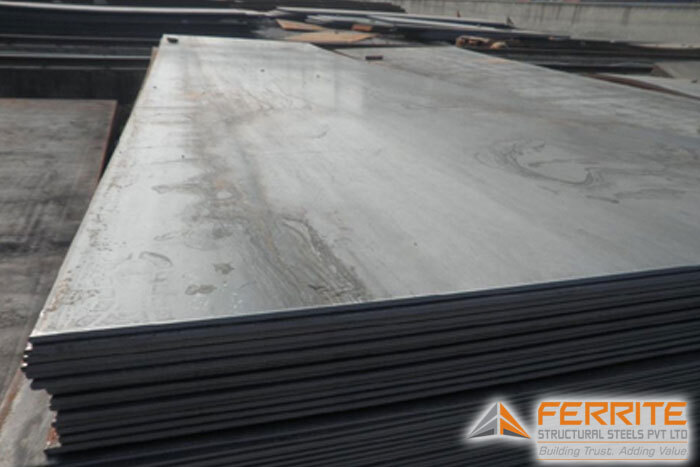

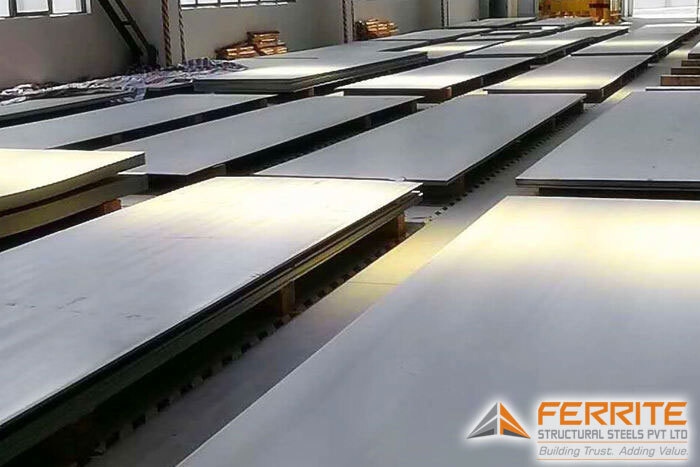

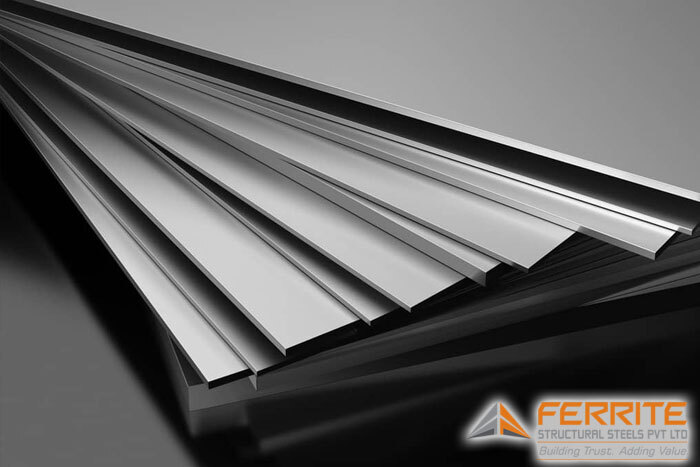

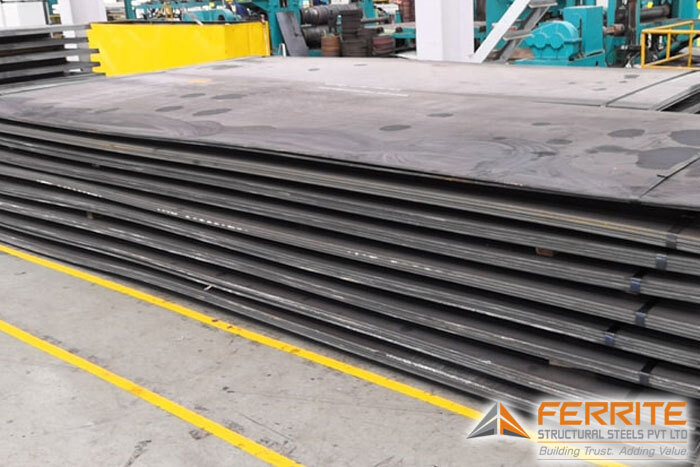

Boiler plates are high-strength steel plates designed to withstand high pressure and temperature, making them suitable for use in boilers, pressure vessels, and various industrial applications.
Key Features of Boiler Plates:
-
Material Grade:
- Typically manufactured in IS 2002 (or equivalent) standards.
- Grades like IS 2062 E250, IS 2026, ASTM A516, ASTM A537, and EN 10028 are common.
-
Thickness & Dimensions:
- Available in various thicknesses ranging from 5 mm to 150 mm or more.
- Standard widths: 1000 mm, 1250 mm, 1500 mm, and customized sizes.
- Length: Standard lengths range from 3 meters to 12 meters, with customized lengths available.
-
Properties:
- High strength and durability.
- Excellent resistance to elevated temperatures, pressure, and corrosion.
-
Standards & Specifications:
- IS 2002: Covers specifications for boiler quality plates.
- ASTM A516: Used for pressure vessels operating under moderate to high-temperature conditions.
- EN 10028: Commonly used for pressure equipment and vessels.
Applications of Boiler Plates:
- Boilers & Pressure Vessels:
- Used in boilers, pressure vessels, heat exchangers, and piping systems.
- Power Plants & Petrochemical Industries:
- Ideal for manufacturing pressure components that operate under high-pressure and high-temperature conditions.
- Chemical Plants & Refineries:
- Used for components exposed to aggressive chemical environments.
- Marine & Offshore Industries:
- Utilized in marine applications like storage tanks, offshore platforms, and marine vessels.
Benefits of Boiler Plates:
- High Strength & Durability:
- Designed to endure extreme pressure, temperature, and corrosive environments.
- Excellent Corrosion Resistance:
- Coated options like galvanization or specific alloying enhance corrosion resistance.
- Temperature & Pressure Resistance:
- Boiler plates maintain structural integrity under high thermal and pressure conditions.
- Cost-Effective:
- Long service life, reducing maintenance costs.
Technical Specifications:
Property |
Details |
Material Grade |
IS 2002, IS 2062, ASTM A516, EN 10028 |
Thickness |
5 mm 150 mm or as required |
Width |
1000 mm, 1250 mm, 1500 mm (customized) |
Length |
3 meters 12 meters or customized |
Tensile Strength |
415 MPa 550 MPa |
Yield Strength |
250 MPa 450 MPa |
Applications |
Boilers, Pressure Vessels, Heat Exchangers, Chemical & Marine Industries |
Boiler plates are critical in various industries requiring high-performance, durable materials capable of withstanding extreme conditions.
